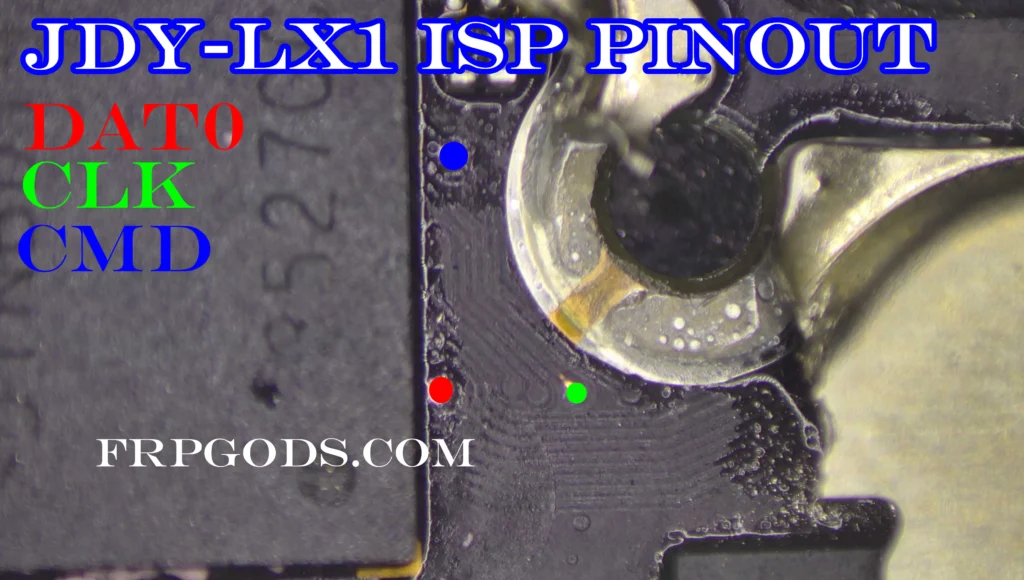

If you are looking for the tested Honor JDY-LX1 (Huawei Y6 Prime 2018 / Honor 7A) eMMC ISP Pinout, here is the complete diagram and connection guide for direct hardware repairs.
By connecting via ISP (In-System Programming), you can perform low-level operations directly on the eMMC chip without desoldering it from the motherboard.
🛠️ Supported Operations:
- FRP Lock Bypass: Remove Google account verification easily.
- Factory Reset: Clear screen patterns, PINs, and user data.
- Firmware Flashing: Flash stock ROMs directly to bricked devices.
- Dead Boot Repair: Unbrick devices with damaged boot partitions.
- Security Backup: Read/Write NVRAM, NVDATA, and partition tables.
⚡ Supported Hardware Boxes & Tools:
- EasyJTAG / EasyJTAG Plus Box
- F64
- UFI Box
- Medusa Pro / Medusa Pro II
- MiPI Tester Box
- Hydra Tool / Aqua Dongle
🔌 Connection & Power Instructions:
- Solder high-quality thin copper wires to CLK, CMD, DAT0, and GND test points on the board.
- For power (VCC & VCCQ), you can either solder the 1.8V / 2.8V-3.3V lines or simply connect a micro-USB cable to the phone without battery.
- Keep wire lengths under 3 to 5 cm to avoid data read/write errors.
